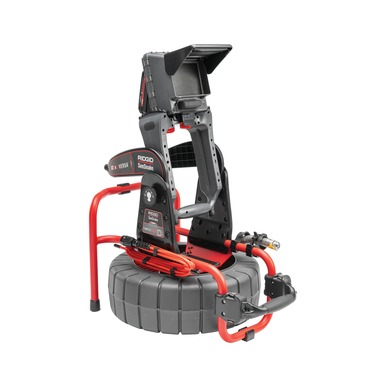

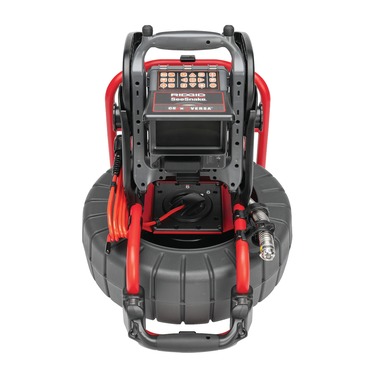

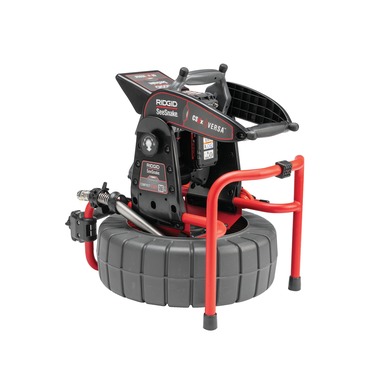

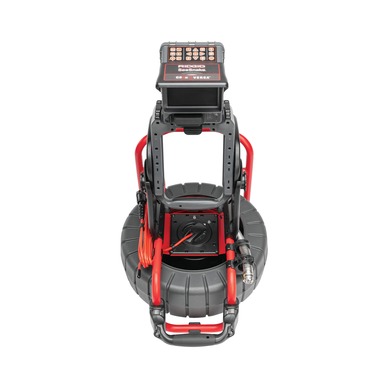

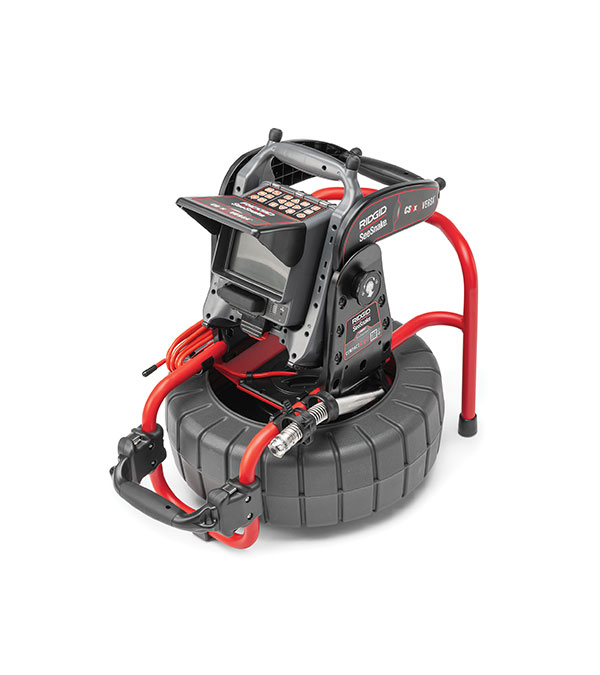

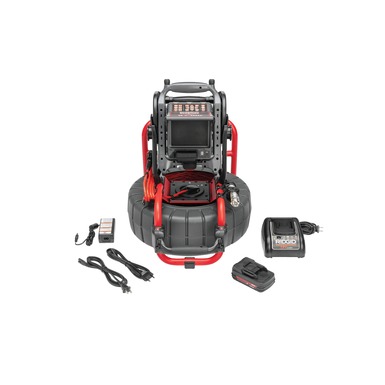

SeeSnake Compact C40 Camera System with TruSense

The SeeSnake Compact C40 provides digital recording monitoring with Wi-Fi, for fast, efficient job setup. Tilt monitoring allows you to view your monitor at your desired angle or remove it for convenient job site placement. Always nail the image with self-leveling camera technology. The TruSense technology features a high dynamic range image sensor with two-way communication between the camera and Seesnake.

Download

Features

  • Quick-release dock for the Cs6x Versa.
  • Digital Recording Monitor with Wi-Fi provides fast, efficient job setup.
  • Tilt the monitor to the desired viewing angle while docked or remove it for convenient job site placement.
  • Self-Leveling Camera head provides an image that is always upright.
  • TruSense technology features a high dynamic range (HDR) image sensor and two-way communication between the camera and SeeSnake CSx series Wi-Fi enabled monitors.
  • HDR image sensor maintains color and detail in high dynamic range scenes.
  • TiltSense inclinometer shows camera′s angle in-pipe on CSx series monitors.
  • Download the free HQx Live app to view and record inspection jobs on your phone or tablet.
  • Use the high power FleXmitter 512 Hz sonde with a RIDGID receiver to locate the camera.



Specifications

Line Capacity 1.5" to 6" (38mm to 152mm)
Push Cable Length 131′ (40m)
Push Cable Diameter 0.26" (6.7 mm) with 3 mm [0.12 in] Fiberglass core
Push Cable Jacket Polypropylene
Push Cable Bend Minimum Radius 2.5" (63.5 mm)
Weight (without batteries) 17.6 lbs. (8.0 kg)
Size Length 25" (63.5 cm)
Width 14" (35.6 cm)
Height 17" (43.2 cm)
Camera Type 1" (25 mm)
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Storage Temperature 14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor IPx5
Light Source High-Intensity LED Sonde 512 Hz
